Как правило электронные устройства, а в ряде случаев программы для успешного выполнения своих функции требуют определенные дополнительные принадлежностей. Это могут быт провода, адаптеры, держатели и так далее.

К сожалению не всегда очевидно какие дополнительные аксессуары могут понадобиться клиенту. Мы стараемся прислушиваться к мнению пользователей систем относительно того что им нужно для использования нашей продукции в их работе. Исходя из этого список предлагаемых нами вспомогательных приспособлении не является фиксированным и застывшим, а постоянно растет и меняется.

Overview

SVC-819

The SVC819 is the only cart on the market specifically designed to be able to do bistatic surveys with large VHF antennas and the SIR3000 from GSSI. As all other carts from Geoscanners AB this cart is completely built using fibre glass pipes and plastic junctions to result in a very rugged and durable construction. The SVC819 comes equipped with a ENC820 survey wheel encoder and the required cables to operate it.

SVC-820

The SVC-820, our most popular cart, is used for our U-Explorer system. As all other carts from Geoscanners AB this cart is completely built using fibre glass pipes and plastic junctions to result in a very rugged and durable construction. The SVC820 comes equipped with a ENC820 survey wheel encoder and the required cables to operate it.

SVC-821

The SVC-821 cart is used for our U-Explorer mini system. As all other carts from Geoscanners AB this cart is completely built using fibre glass pipes and plastic junctions to result in a very rugged and durable construction. The SVC821 comes equipped with a ENC820 survey wheel encoder and the required cables to operate it.

SVC-822

The SVC-822 cart is mainly used for the air-launched antenna FLB-390. As all other carts from Geoscanners AB this cart is completely built using fibre glass pipes and plastic junctions to result in a very rugged and durable construction. The SVC822 comes equipped with a ENC820 survey wheel encoder and the required cables to operate it.

GSH4921

The GSH4921 cart is used for our Scorpio system. As all other carts from Geoscanners AB this cart is completely built using fibre glass pipes and plastic junctions to result in a very rugged and durable construction. The GSH4921 comes equipped with a ENC820 survey wheel encoder and the required cables to operate it.

ENC711

This cart was specifically designed to work together with the 5103 antenna from GSSI or the otherwise known as "the 400". This cart is particularly useful for surveying walls when the operator has to hold the antenna against the wall all the time. The ENC711 has an inbuilt survey wheel allowing for an easy way of carrying on with distance mode surveys. The survey cart is completely made out of milled aluminum and therefore is very light and durable.
Go to the ENC711 web page ...

GST806

The survey trailer GST806 is a very rugged and light weight trailer for antennas large geotechnical antennas. It is designed so one can tow it behind any vehicle equipped with a standard 50mm hitchball. The trailer is completely built out of fibre glass and plastic junctions to prevent interference with the antenna elements. It also has an integrated survey wheel encoder for applications requiring exact locations of features under the ground.
Go to the GST806 web page ...

GTP-901

This survey tripod for borehole antenna applications was designed at a special request from one of our customers in Germany. It was specifically designed to allow a large distance between the ground and the pulley for the cable. It is completely built using fibre glass pipes, plastic junctions and custom made POM parts resulting in a rugged and durable construction yet very light weighted.
Go to the GTP-901 web page ...

Overview

ECU902

The ECU902 is a display unit for quadrature survey wheel encoders with no index output. This unit in particular is very useful for assessing the cable length in applications such as borehole antennas surveys. Connected to the encoder of the tripod prove to be extremely useful in tomography surveys. The unit is absolutely transparent to the operation of the encoders connected to it and provides very bright readings even with direct sunlight.
Go to the ECU902 web page ...

TRG-715

The dual output triggering device TRG-715 is a unique piece of equipment that we developed for railway surveys in Denmark. We needed a three channel radar in order to be able to scan the ballast on the sides and in the front, we decided to use two independent ground penetrating radars. The problem came when we needed to syncronize the data files from both units; that's how the dual output triggering device was born.
Go to the TRG-715 web page ...

TRG-817

The success of our GeoPointer X© wouldn't have been completed without our triggering device TRG-817. It is essentially this device that makes so easy to incorporate GPS positions and GPR markers into a unified database for a later linking process. This unit can be used inside a car or wherever the main ground penetrating radar unit is located to facilitate the use of both acquisition softwares.

Go to the TRG-817 web page ...

ENC820

This hollow shaft magnetic encoder was developed primarily for our line of survey carts. It happened that some of our customers are very skilled manufacturing survey accessories as well and they wanted to buy just the encoder from us. We then decided to make the encoder solution for all of our customers who wanted it. The unit can be purchased with different magnetic rings to best suit your particular application.

Go to the ENC820 web page ...

Overview

Extra accessories

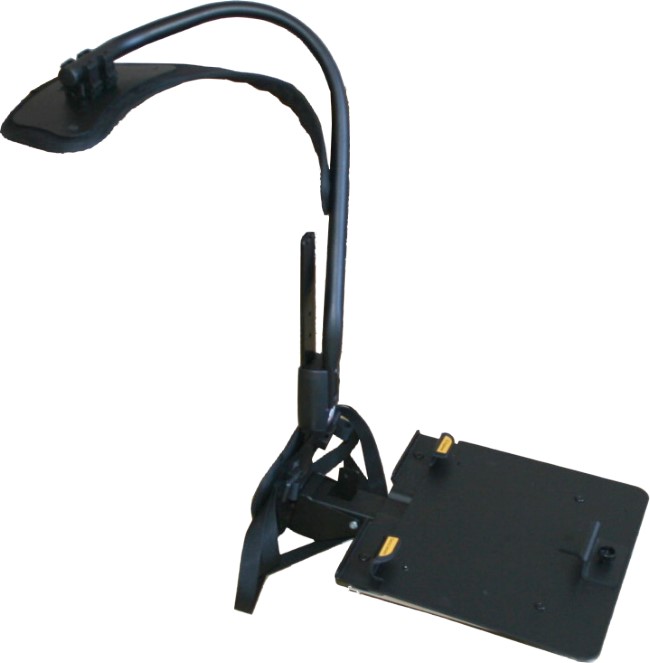

Control unit harness with computer tray

Our harness, with fastening for our Akula 9000 control unit and a Panasonic CF-19 notebook, is the most comfortable solution for rough terrain survey equipment available on the market right now.

Used with our SVC-822 cart and FLB-390 antenna or the Scorpio-system it provides comfort as well as an ergonomic smart way of doing your survey. This offers the advantage of concentrating on the data collection process rather than on the discomfort of carrying the equipment.

GCB-antenna trays

Protection tray-kit for GCB-200 and 300

Protect your investment from scratches and extra ware by using this custom made protection sled tray.
Easy to use and replace.

Fits the GCB-200 and 300 models.

Protection tray-kit for GCB-400, 500 and 700

Protect your investment from scratches and extra ware by using this custom made protection sled tray.
Easy to use and replace.

Fits the GCB-400, 500 and 700 models.

Protection tray-kit for GCB-100

Protect your investment from scratches and extra ware by using this custom made protection sled tray.
Easy to use and replace.

Fits the GCB-100 model.

GCB-antenna sleds

Protection tray-kit for GCB-200 and 300

Protect your investment from scratches and extra ware by using this custom made protection sled tray.
Easy to use and replace.

Fits the GCB-200 and 300 models.

Protection tray-kit for GCB-400, 500 and 700

Protect your investment from scratches and extra ware by using this custom made protection sled tray.
Easy to use and replace.

Fits the GCB-400, 500 and 700 models.

Also available in Large for the GCB-100.
